Massive Dimension
MDPE50 - Additive Manufacturing Extruder
Quantity:
25% OFF - End of Year Sale
Use code FILABOT25 to save 25% at checkout

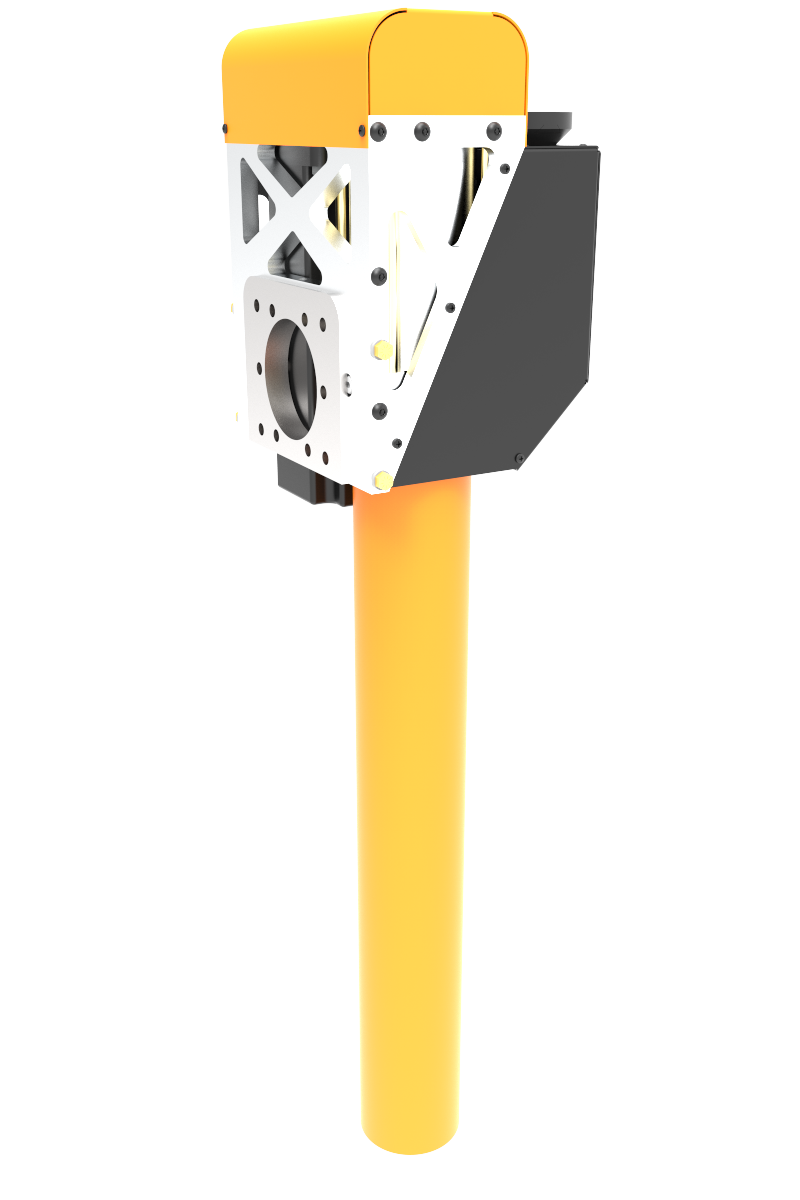

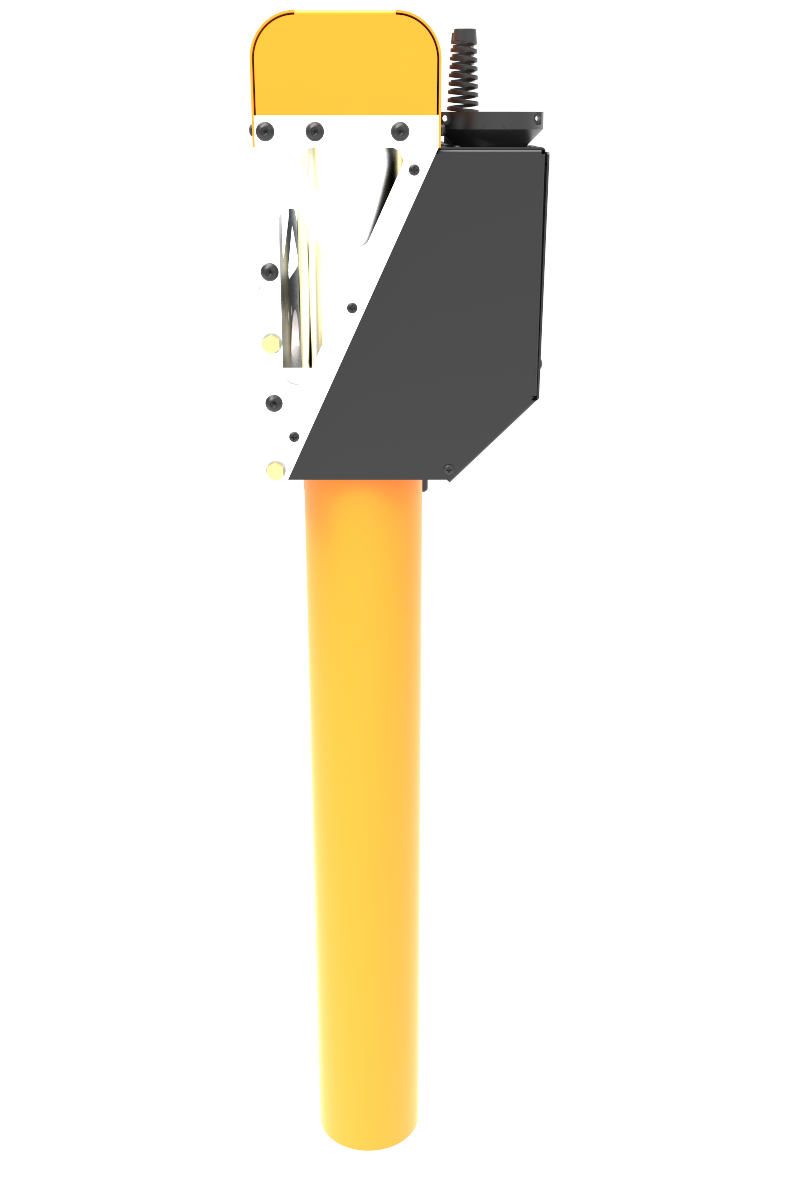

The new MDPE50 is Massive Dimension's largest, highest output extruder. This system outputs a max mass flow rate of over 60lbs per hour. This design is optimized for robotic printing by utilizing as few parts as possible in an effort to reduce the weight as much as possible while still delivering a robust extruder that will meet the demands of our users. To that end, this system comes standard with a nitrated barrel and screw, this increases the longevity of operation for production and long-duration printing. The screw is removable for easy cleaning of the flights and the barrel.
Specifications
- Voltage: 400 to 480VAC – 3Phase
- Dimensions: 43in Tall x 12in Wide x 9in Deep
- Barrel Temperature: Up to 400°C
- Screw L/D Ratio: 24:1
- Max Mass Flow Rate: 61.75lbs (28kg) per hour of PLA LX175 at full pellet melt
- Weight: 130lbs (58kg)
- Compatible Materials: Commercially available pellets, filled or unfilled thermoplastics, ABS, PS, PC, PETG, PET, PLA, HIPS, TPU, TPE, Ultem, PEEK, and many more
